The batimet TA35 IN KIT: Separates frame and glass supply
Giving you the edge in the market for wood-aluminium windows and façades

Reduce your manufacturing costs

The batimet TA35 IN KIT is a prefabricated wood-aluminium system, delivered without glazing. Purchase your glass directly from the glass industry to offer the end product at highly competitive pricing.

Ensure product quality and performance

As a market leader for wood-aluminium windows and façades, batimet not only provides you with a proven high quality system. We also pass pass on all necessary certifications, e.g. for your passivehouse projects.

Get highly competitive prices

Offer your products at best prices to beat your competitors: Thanks to lower overall costs (e.g. through reduced packaging and shipping costs) and greater flexibility in sourcing glass.

batimet TA35 IN KIT - Your benefits

Lower logistics costs

Better purchasing conditions for glass

Reduced labor

Elimination of glass margin

No extra machinery or tools

No extra investment

batimet Projekte
batimet Projekte
batimet Projekte
batimet Projekte
batimet Projekte
batimet Projekte
batimet Projekte
batimet Projekte
batimet Projekte
batimet Projekte
batimet Projekte
batimet Projekte

What you need to know about the batimet TA35 IN KIT

What is the batimet TA35 IN KIT?
The batimet TA35 IN KIT is a prefabricated set of components for building wood-aluminium windows and façades, which separates the frame and glass supply. With our system you can source the glass part yourself and thus offer your products at an highly attractive pricing to the market
Why is it beneficial to separate the frame and glass supply?
By separating the supply chain, you can significantly reduce your costs: Shipping pre-fabricated frames without glass lowers logistics expenses. By sourcing glass directly from the glass industry, you can obtain better pricing and select glass that precisely meets your project needs.
What are the specific cost savings I can expect?
You will benefit from lower logistics costs (no glass in transport), better glass purchasing power by buying directly from the glass industry, reduced labor costs by performing the glazing in-house, and the elimination of our glass margin.
What are my savings compared to purchasing fully glazed units?
We can provide a detailed price comparison based on your specific project requirements to demonstrate the savings. Just send us your specs to kit@batimet.com.
Boost your market competitivenes with the batimet TA35 IN KIT, our innovative, cost-effective
system delivery approach. Send us your enquiry now to explore how you can achieve
significant savings and competitive pricing without compromising quality.
Get in touch!

batimet Wood-Aluminium Integral Window Systems

Request an Offer
batimet TA35 IN
batimet TA35 IN

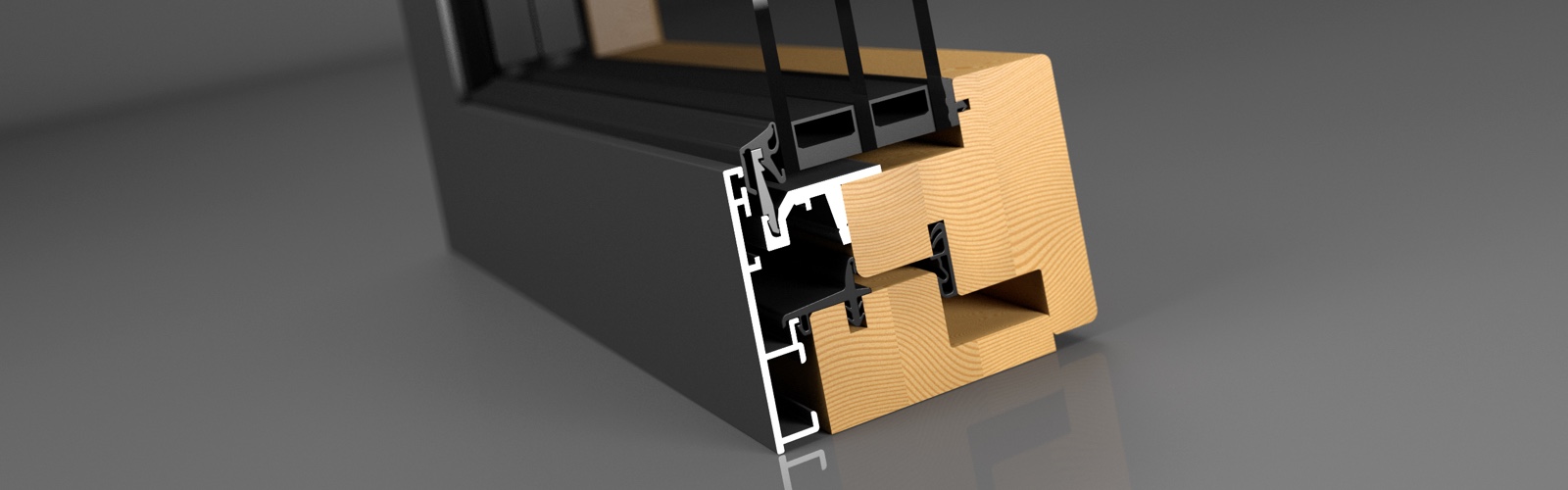

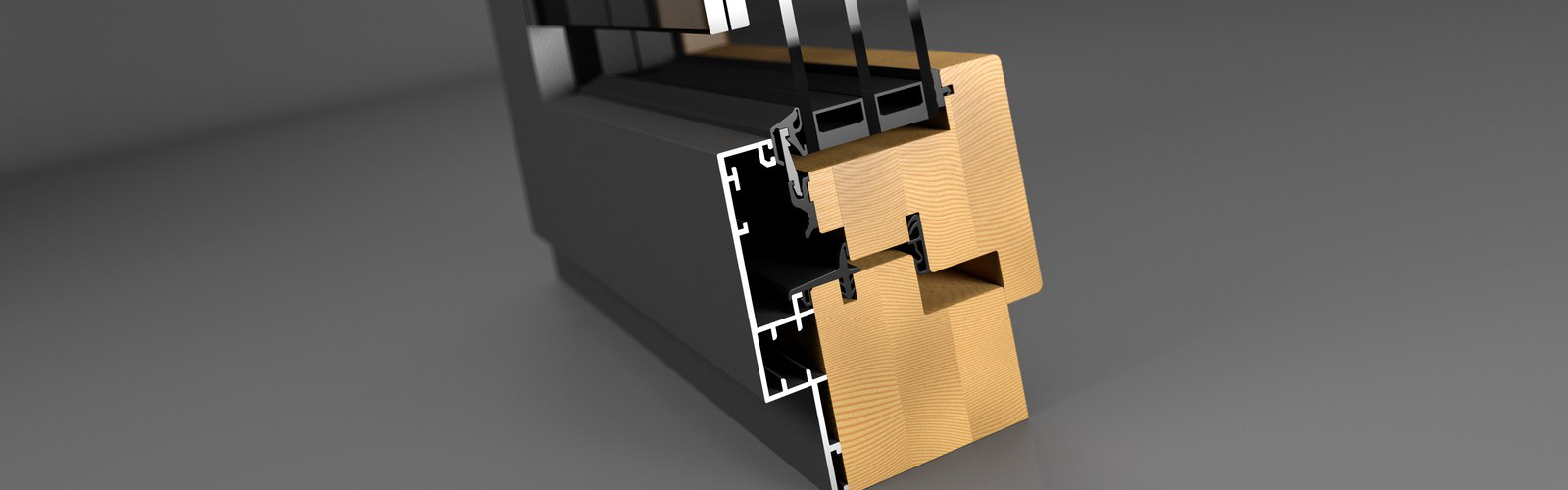

batimet TA35 IN Schnitt

Wood-Aluminium Window
batimet TA35 IN

Request your personal architecture sample: Free Sample

The frame profile conceals the sash profile insofar that there is an even elevation of the frame between fixed glazing and opening elements. Between glass and sash profile there is a rebate of 8 mm depth. The construction is defined as an integral sash or as „Blockflügel“. The sash profile can be wider in the case of certain static requirements. Drainage of the rebate area is by means of concealed punch holes in the bottom profile crosspiece of the frame. Optionally, there can be visible drainage with a cover cap.

  • Height of Sash to 3,000 mm
  • Width of Sash to 1,600 mm
  • Weight of Sash as Tilt/Turn to 200 kg
  • Weight of Sash as Turn Only to 300 kg

The corner joints of the aluminium frame are welded without any visible joint line. Coating is carried out in conformity with the valid quality guidelines of the coating of building parts in aluminium of GSB-International GSB AL 631, or QUALICOAT regulations.




Top Uw-Values

Uw-Values ≥ 0.70 W/m²K

Types of Wood

Spruce, Pine, Fir, Larch, Oak, Hemlock, Douglas Fir

Surface

RAL, NCS, DB, anodised, metallic, highly weather resistant, sea water proof

Corner Joint

Welded, no visible joint lines, durable anti corrosion coarting

DIN EN 12207 Air Permeability: Class 4
DIN EN 12208 Driving Rain Resistance: Class E900
DIN EN 12210 Windload Resistance: Class C4
DIN EN ISO 10077-2 Uw ≥ 0.70 W/m²K
DIN EN ISO 717-1 Noise Insulation: Rwp = 46 dB
DIN EN 1627 Burglar Resistance: RC1N, RC2N, RC2
DIN 18008-4 TRAV Safety Barrier: Category A, B, C
