batimet TA35 SLRA
Request your personal architecture sample: Free Sample

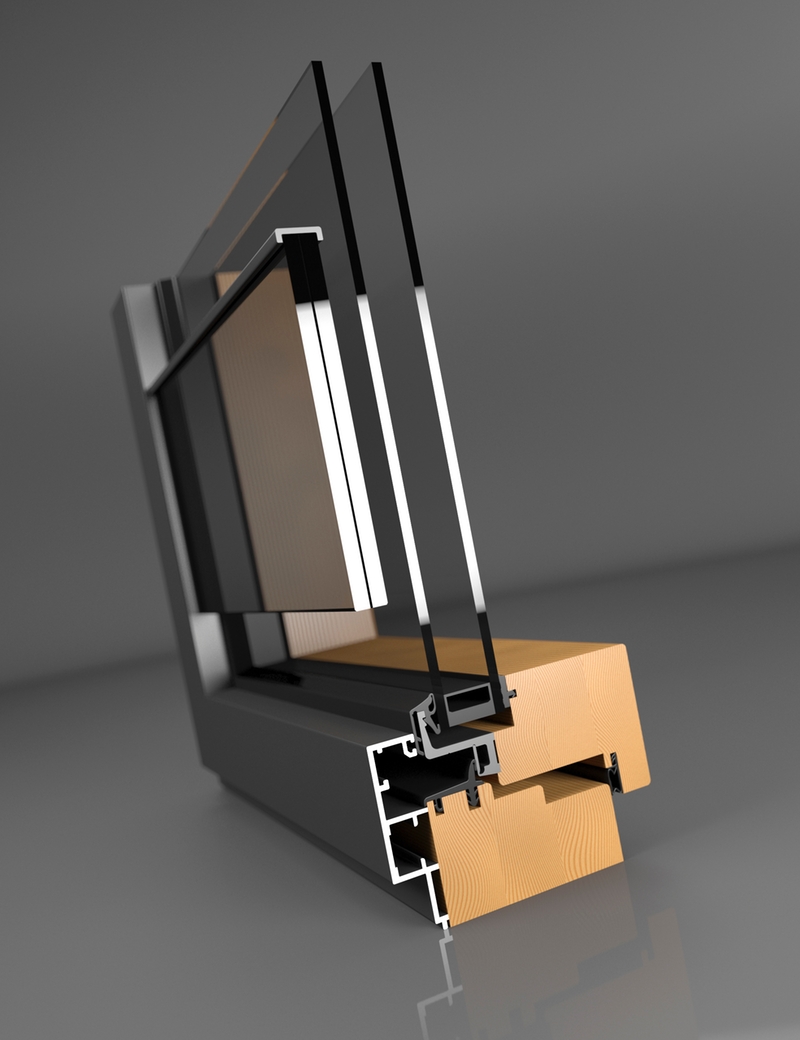

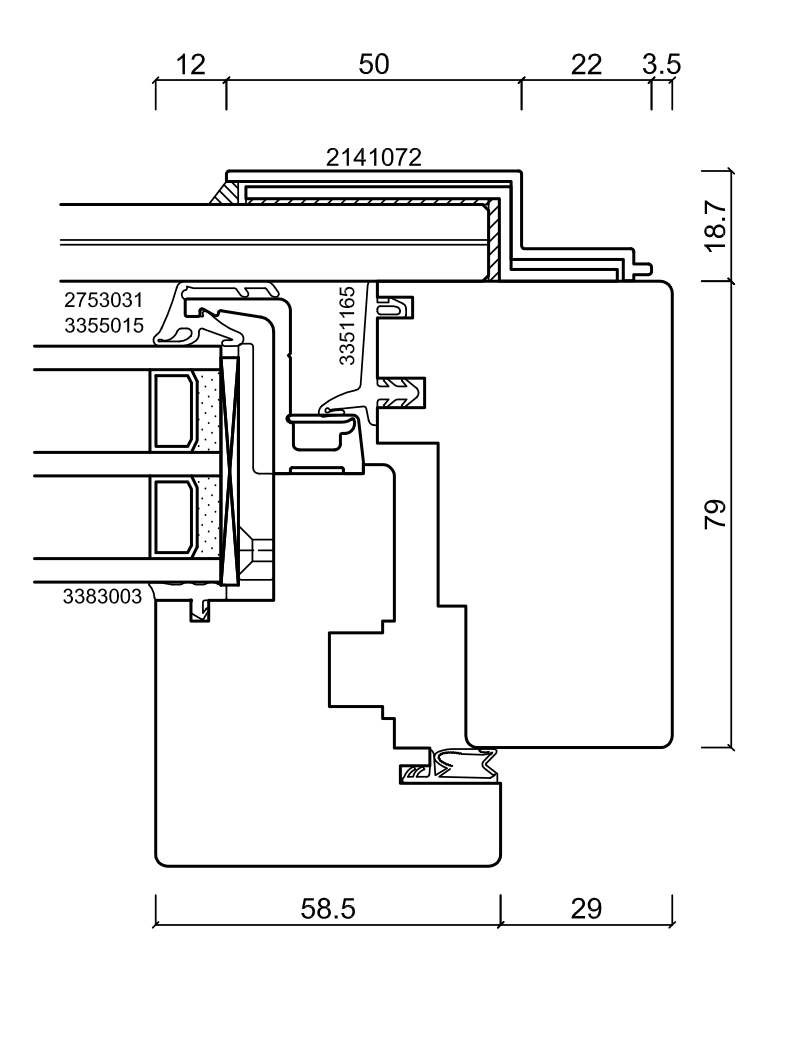

The frame profile conceals the sash profile insofar that there is an even elevation of the frame between fixed glazing and opening elements. The shape of the system construction is defined by its slim frame elevation of 50 mm. Between glass and sash profile there is a rebate of 8 mm depth. The construction is defined as an integral sash or as „Blockflügel“. The sash profile can be wider in the case of certain static requirements. Drainage of the rebate area is by means of concealed punch holes in the bottom profile crosspiece of the frame. Optionally, there can be visible drainage with a cover cap. Integrated glass fall protection invisibly fixed in the aluminium frame. The glass pane is integrated into the aluminium frame by means of a system milling. The glass fall protection is fastened by a special, fully concealed retaining profile system. The design is carried out according to the regulations of DIN 18008-4 for fall-proof glazing. The glass pane in all widths is always constructed as a laminated safety glass pane made of 2 x toughened safety glass of 6 mm each. The upper edge is formed by a filigree system edge protection profile made of aluminium.
- Height of Sash to 3,000 mm
- Width of Sash to 1,600 mm
- Weight of Sash as Tilt/Turn to 200 kg
- Weight of Sash as Turn Only to 300 kg
The corner joints of the aluminium frame are welded without any visible joint line. Coating is carried out in conformity with the valid quality guidelines of the coating of building parts in aluminium of GSB-International GSB AL 631, or QUALICOAT regulations.
Uw-Values ≥ 0.69 W/m²K
Types of Wood
Spruce, Pine, Fir, Larch, Oak, Hemlock, Douglas Fir
RAL, NCS, DB, anodised, metallic, highly weather resistant, sea water proof
Welded, no visible joint lines, durable anti corrosion coarting
