Wood-Aluminium Door
batimet TA35 DSE TNI

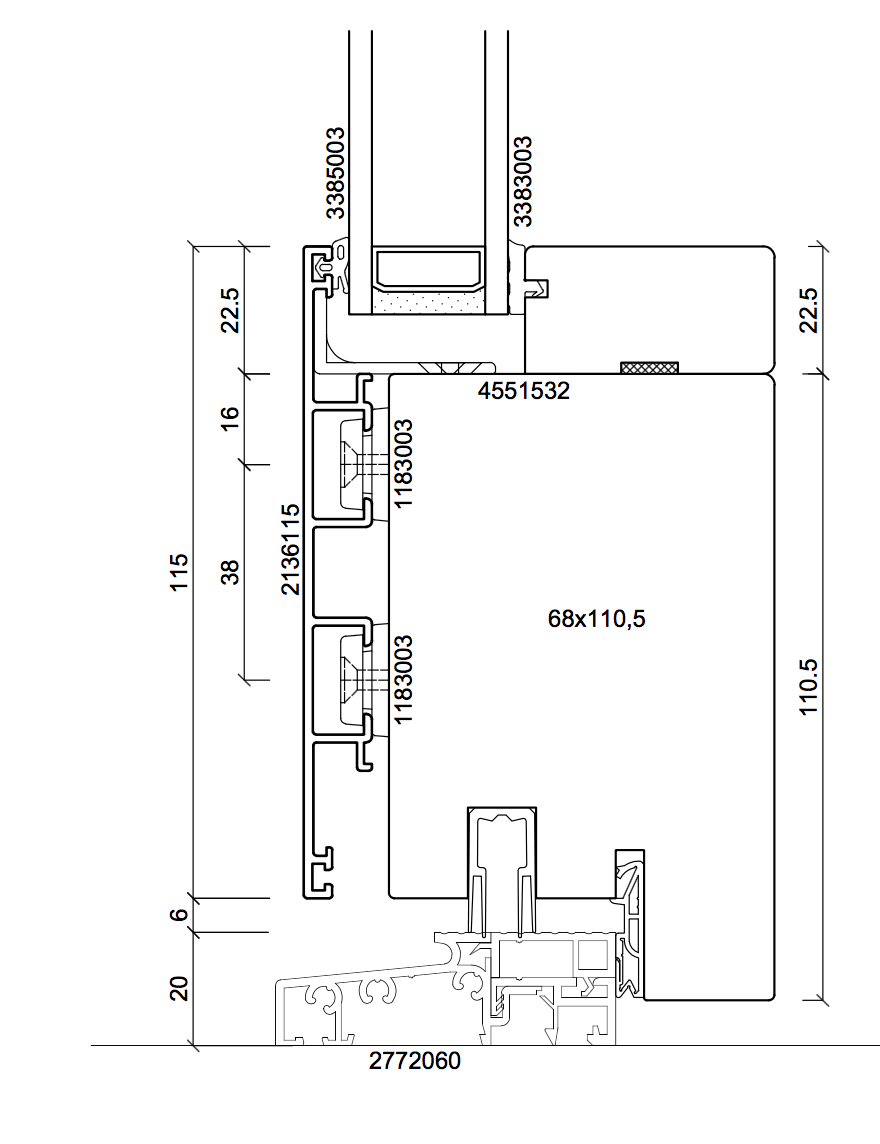

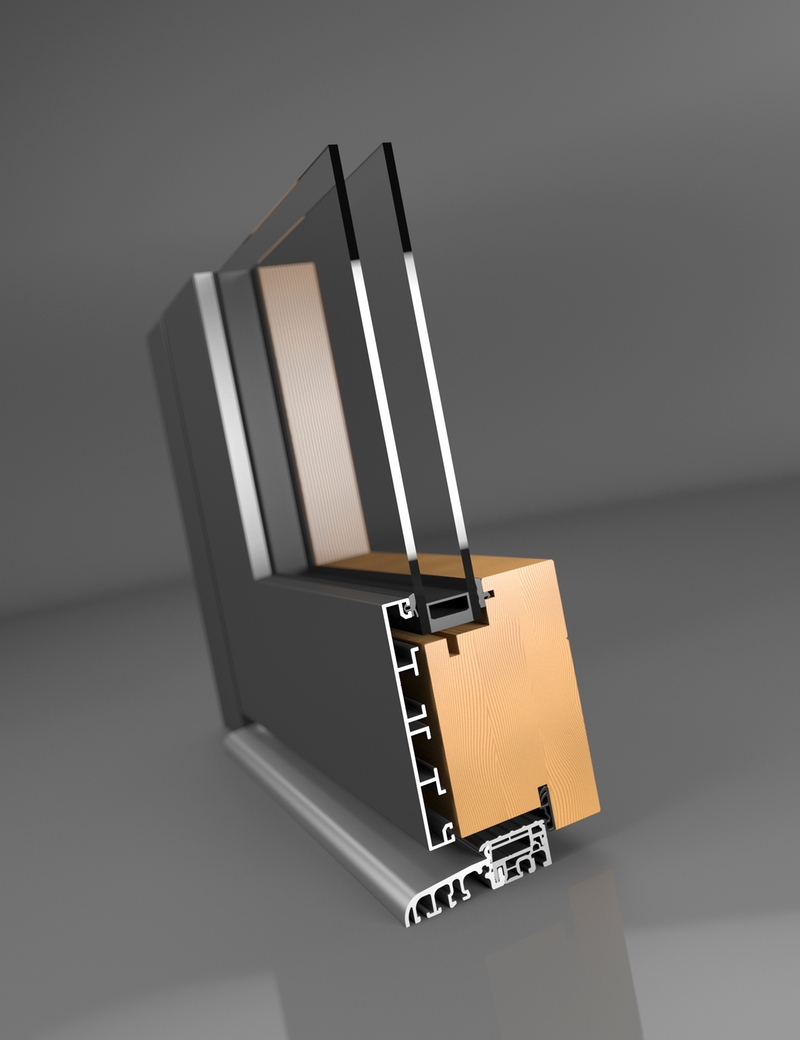

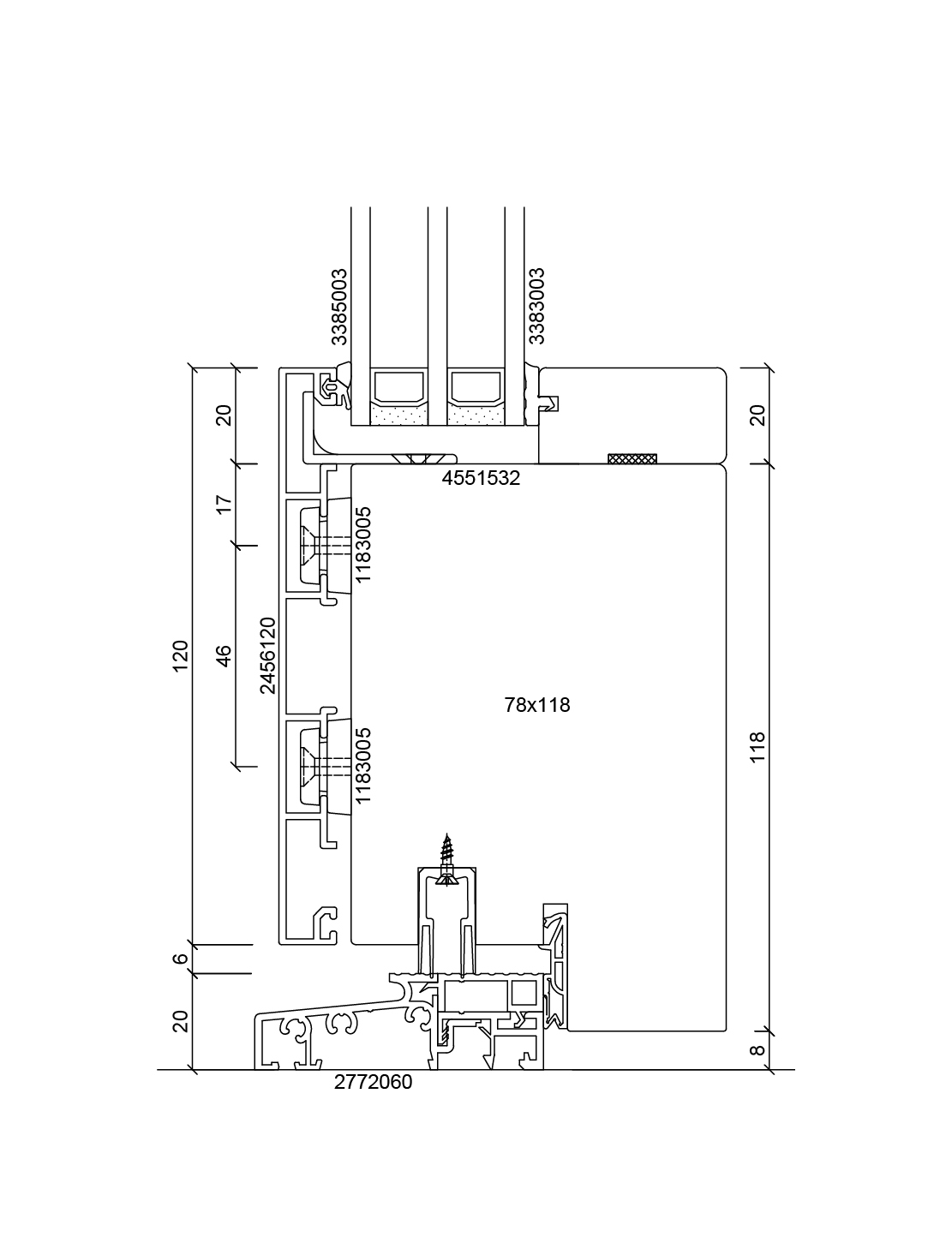

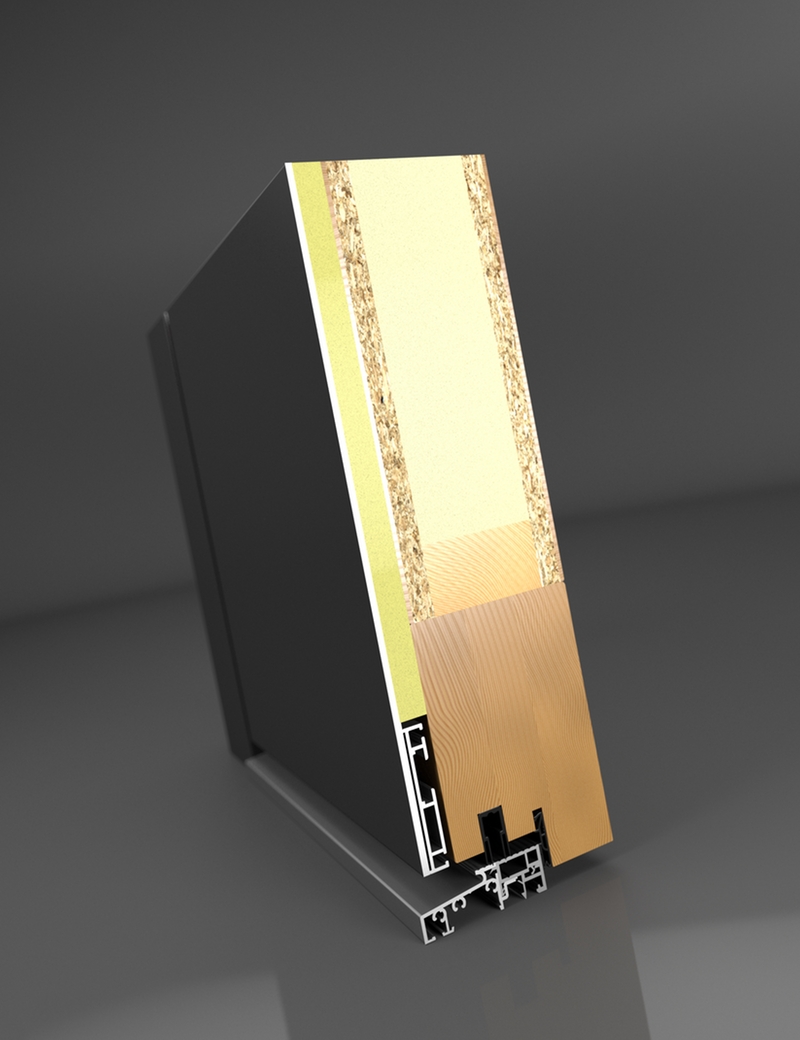

Frame profile and sash profile form a flush surface plane. Between glass and sash profile there is an offset of 18 mm depth. If a sash overlapping panel forms the door’s sash, frame profile and aluminium panel equally are a flush surface plane. Drainage of the rebate area is by means of concealed punch holes in the bottom profile crosspiece of the frame. Optionally, there can be visible drainage with a cover cap.
- Height of Sash to 3,000 mm
- Width of Sash to 1,600 mm
- Weight of Sash as Dreh bis 300 kg
The corner joints of the aluminium frame are welded without any visible joint line. Coating is carried out in conformity with the valid quality guidelines of the coating of building parts in aluminium of GSB-International GSB AL 631, or QUALICOAT regulations.
Top Uw-Values
Uw-Values ≥ 0.83 W/m²K
Types of Wood
Spruce, Pine, Fir, Larch, Oak, Hemlock, Douglas Fir
Surface
RAL, NCS, DB, anodised, metallic, highly weather resistant, sea water proof
Corner Joint
Welded, no visible joint lines, durable anti corrosion coarting
| DIN EN 12207 | Air Permeability: Class 4 |
| DIN EN 12208 | Driving Rain Resistance: Class 8A |
| DIN EN 12210 | Windload Resistance: Class C4 |
| DIN EN ISO 10077-2 | Uw ≥ 0.83 W/m²K |
| DIN EN ISO 717-1 | Noise Insulation: Rwp = 40 dB |
| DIN EN 1627 | Burglar Resistance: RC1N, RC2N, RC2 |
